TYRELL P34 DRONE DESIGN
A 3D MODELING PROJECT

This is a five week 3D modeling project that mainly focuses on utilizing surfacing skills through the use of Solidworks.
​
The aim of this project is to design a drone for a Formula 1 team. I decided to create a chasing drone for a legendary Six-wheeled Formula 1 race car ---- Tyrell P34.
Inspiration

Tyrell P34 – a groundbreaking race car that defied convention with its revolutionary six-wheeled design. Born in an era of innovation, the P34 stunned the motorsport world with its unique configuration, featuring four small front wheels instead of the traditional two. This daring engineering marvel wasn't just about turning heads; it was about enhancing performance on the track. With its reduced drag and increased front-end grip, the P34 offered unparalleled agility and cornering prowess, giving drivers an edge like never before. A true icon of ingenuity, the Tyrell P34 remains a testament to the bold spirit of exploration and the relentless pursuit of excellence in motorsports history.
Rendering video

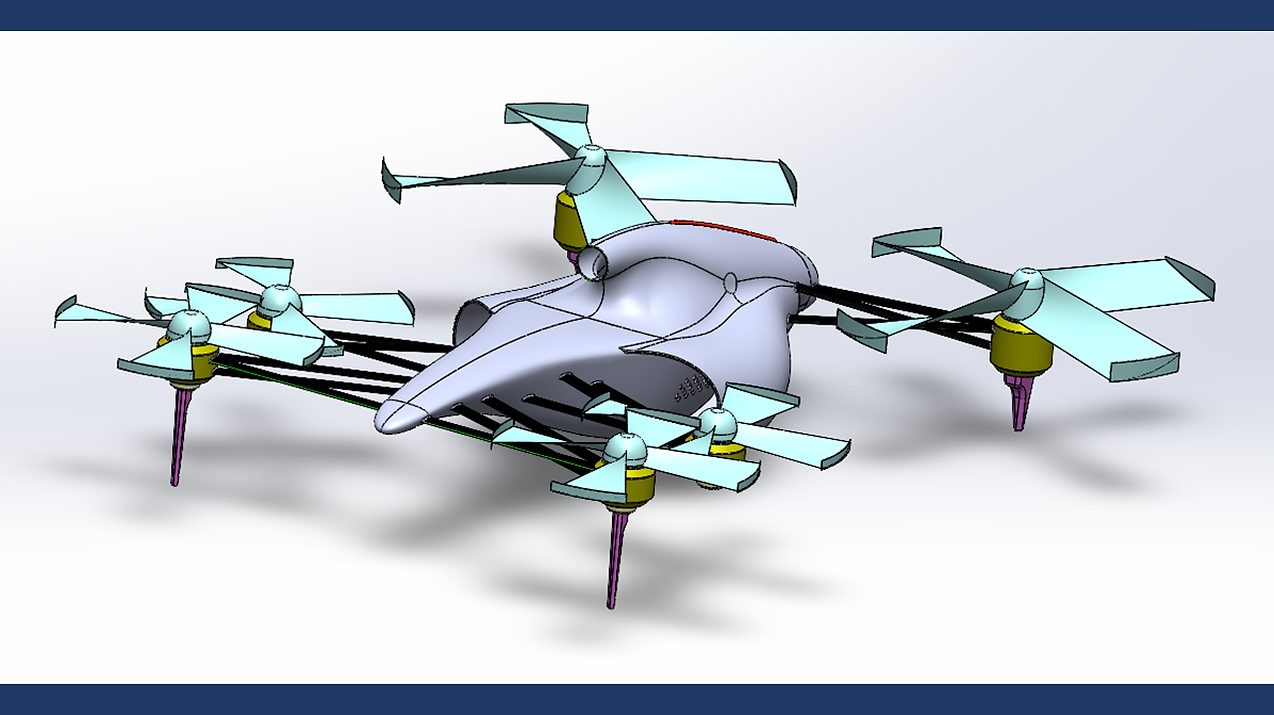

Modeling process






Design elements
Final rendering
Propeller design inspiration
Suspension design inspiration

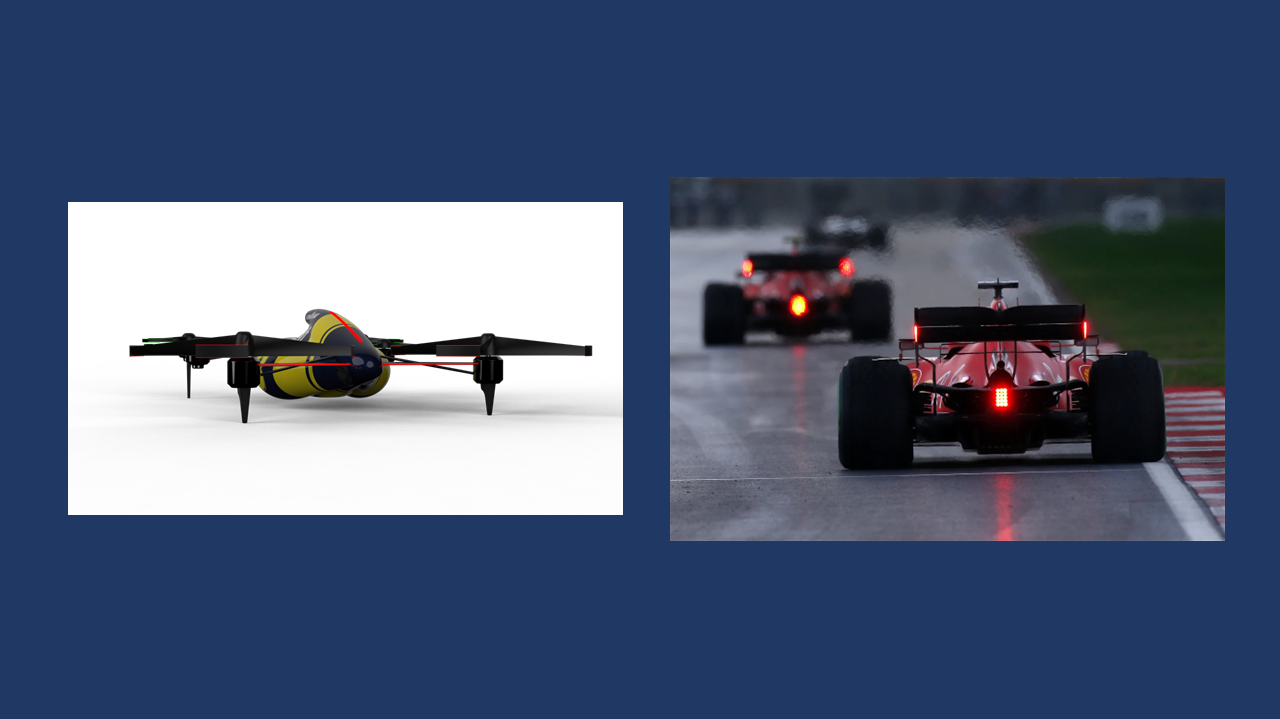

Rear light design inspiration
